Shaw Core Drill

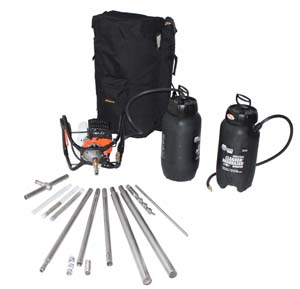

 Chaltrek is proud to be the Canadian Distributor for the Shaw Portable Core
Drill. It will allow the collection of fresh rock core samples at depths well
below the weathered zone of most rock outcrops and is portable, self-contained,
easy to use and fast drilling.
The Shaw Tool Company now offers three diameters of core drilling and sampling
equipment: 25 mm O.D., 41 mm O.D., and 51 mm O.D.
Drilling System Comparative Advantages
25 mm O.D.
- less costly
- penetrates faster
- uses less water and fuel
- best portability
- easier to lift long drill strings
- best for soil sampling
41 mm O.D.
- larger rock cores (37 mm)
- less core breakage
- best for dynamite
- best for rock anchoring
- best for cold demolition (expanding cement in rock or concrete)
- least jamming
51 mm O.D.
- best for installation of standard monitoring wells
- largest core for split samples
Applications
- mineral exploration
- concrete and rock cold demolition
- fence post in rock installation
- boring for landscape utilities
- anchor bolt and rebar installation
- geotechnical sampling
- blasting
- domestic well installation
Suggested 25 mm (1 inch) OD Equipment Kit (in US $):
| Engine drill, Tanaka 270 PF (re-ported & re-geared) |
$1000.00 |
| water supply system, swivel, bottles, valve, hoses |
$300.00 |
| threaded lead adaptor, hardened stainless steel |
$90.00 |
| threaded lead, stainless steel |
$125.00 |
| handle, “T” type, stainless steel |
$190.00 |
| 4 extensions, stainless steel 61 cm. (24 in.) |
$150.00 EACH |
| 3 diamond core bits, replaceable |
$110.00 EACH |
| loose materials bit, helical, carbide blade, water injected |
$225.00 |
| core breaker, hardened stainless steel |
$90.00 |
| core catcher, spring grip tip |
$190.00 |
| knockout rod, “T” handle type, aluminum |
$40.00 |
| backpack, frame, ballistic nylon |
$400.00 |
| core sample tube bundles (50 each) |
$35.00 |
| 2 fuel bottles, aluminum, 1 liter |
$25.00 EACH |
25 MM Accessories (in US $):
| 25 mm threaded lead, stainless steel 61 cm. (24 in.) |
$125.00 |
| 25 mm threaded lead, stainless steel 122 cm. (48in.) |
$200.00 |
| 25 mm extension, stainless steel 61 cm. (24 in.) |
$150.00 |
| 25 mm extension, stainless steel 122 cm. (48 in.) |
$230.00 |
| 25 mm aluminum extension, 61 cm. (24 in.) |
$230.00 |
| 25 mm aluminum extension, 122 cm. (48 in.) |
$250.00 |
| core box; fits approximately 14.6 meters (48 ft.) of core |
$10.00 |
| 25 mm elephant tooth core bit |
$200.00 |
| 25 mm PVC casing 24 in. (61 cm) |
$200.00 |
| 25 mm stainless steel casing 24 in. (61 cm) |
$200.00 |
| 25 mm casing coupling |
$90.00 |
| 25 mm casing driver |
$55.00 |
| 25 mm casing shoe |
$50.00 |
| 25 mm carbide tipped casing bit |
$250.00 |
| 25 mm casing adaptor |
$180.00 |
| 25 mm soil sampler |
$170.00 |
| 25 mm soil sampler tube bundles (50 each) |
$35.00 |
Suggested 41 mm (1-5/8 inch) OD Equipment Kit (in US $)
:
| Engine drill, Tanaka 270 PF (re-ported & re-geared) |
$1000.00 |
| water supply system, swivel, bottles, valve, hoses |
$350.00 |
| threaded lead, stainless steel |
$195.00 |
| handle, “T” type, stainless steel |
$250.00 |
| 4 extensions, stainless steel 61 cm. (24 in.) |
$185.00 EACH |
| 3 diamond core bits, replaceable |
$170.00 EACH |
| loose materials bit, helical, carbide blade, water injected |
$270.00 |
| core catcher, spring grip tip |
$230.00 |
| core breaker, hardened stainless steel |
$125.00 |
| knockout rod, “T” type stainless steel |
$40.00 |
| 2 fuel bottles, aluminum, 1 liter |
$25.00 EACH |
| backpack, frame, ballistic nylon |
$400.00 |
| 25 gallon (114 liter) tank with 12V on demand pump |
$240.00 |
41 MM Accessories (in US $):
| 41 mm threaded lead, stainless steel 61 cm. (24 in.) |
$195.00 |
| 41 mm threaded lead, stainless steel 122 cm. (48 in.) |
$280.00 |
| 41 mm core catcher, spring grip tip 61 cm. (24 in.) |
$230.00 |
| 41 mm core catcher, spring grip tip 122 cm. (48 in.) |
$300.00 |
| 41 mm extension, stainless steel 61 cm. (24in.) |
$185.00 |
| 41 mm extension, stainless steel 122 cm. (48 in.) |
$300.00 |
| 41 mm aluminum extension, 61 cm. (24 in.) |
$250.00 |
| 41 mm aluminum extension, 122 cm. (48 in.) |
$300.00 |
| core box (fits approximately 4.8 meters (16 ft.) of core) |
$10.00 |
| core sample tube bundles (50 each) |
$40.00 |
| 41 mm elephant tooth core bit |
$300.00 |
Suggested 51 mm (2.00 inch) Equipment Kit (in US $)
:
| Engine drill Tanaka 270 PF, re-ported, re-geared |
$1000.00 |
| water supply system, swivel, bottles, valve, hoses |
$350.00 |
| handle, “T” type, stainless steel |
$250.00 |
| 4 x 41 mm extensions, stainless steel 61 cm. (24 in.) |
$185.00 EACH |
| 51 mm to 41 mm adaptor, hardened stainless steel |
$350.00 |
| 51 mm threaded lead, stainless steel |
$240.00 |
| 3 x 51 mm diamond bits |
$195.00 EACH |
| 51 mm loose materials bit, helical, carbide blade, water injected |
$400.00 |
| 51 mm core catcher, spring steel |
$380.00 |
| core breaker, hardened stainless steel |
$125.00 |
| knockout rod, “T” type, stainless steel |
$40.00 |
| 2 fuel bottlew, aluminum, 1 liter |
$25.00 EACH |
| backpack, frame, ballistic nylon |
$400.00 |
| 25 gallon (114 liter) tank with 12V on demand pump |
$240.00 |
51 MM Accessories (in US $):
| 51 mm elephant tooth core bit |
$450.00 |
Additional Accessories and Maintenance Parts (in US $):
:
| electric drill |
$520.00 |
| electric drill adaptor |
$12.00 |
| 12V on demand pump (70 psi) |
$130.00 |
| 41 mm to 25 mm adaptor |
$230.00 |
| tripod (weight 53lbs / 24 kg) |
$1,250.00 |
| core box (available in 25 mm, 41 mm, & 51 mm) |
$10.00 |
| Tanaka perfect mix 2 stroke engine oil |
$7.49 |
| lithium grease (for gear casing) |
$14.00 |
| silicone grease (for O-rings) |
$10.00 |
| spark plug |
$3.25 |
| casing driver O-ring |
$0.12 |
| 25 mm O-ring |
$0.22 |
| 41 mm O-ring |
$0.36 |
| 51 mm O-ring |
$0.42 |
We also carry additional maintenance and replacement parts for the engine drill.
Geotechnical components are as follows (in US $):
:
| Soft material sampler |
$150.00 |
| Core sample tube bundles (50) |
$35.00 |
The answers to frequently asked questions are contained in the following
specifications:
(timed trials, full throttle, sea level)
|
| quartzite | 2.7 in/min. | 69 mm/min. |
| slate | 4.7 in/min. | 119mm/min. |
| basalt | 5.0 in/min. | 127 mm/min. |
| sandstone | 5.1 in/min. | 130 mm/min. |
| dolomite | 8.9 in/min. | 226 mm/min. |
| limestone | 9.5 in/min. | 241 mm/min. |
|
|
| 13 fl.oz/hr. | 0.39 l/hr. | 0.7 tanks/hr. |
(full throttle, no load) |
| 1920 rpm |
|
